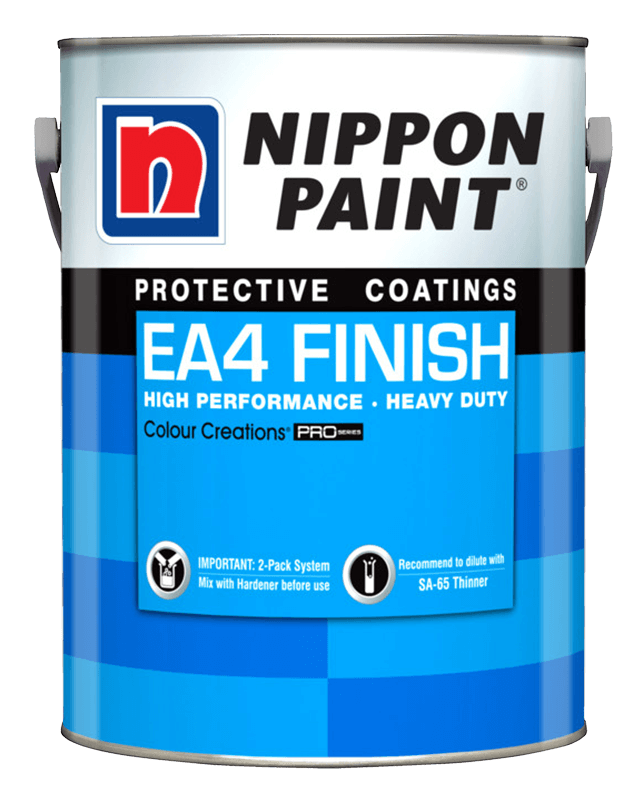

NIPPON PAINT EA4 FINISH TEXTURE is a two-pack amine-adduct cured epoxy finish for use on primed steel surface where chemical, oil and abrasion resistant coating is required. It is recommended for non-immersion services. If it is to be applied over steel, it has to be used in combination with the appropriate primers as recommended below.
|
Product Features: |
Coating System
Application
Coating System
| Type | Product Name | No. of Coat(s) |
|---|---|---|
| Primer/Sealer | Nippon Paint EA9 Finish HB | 1 coat |
| Intermediate | Nippon Paint EA9 Finish HB | 1 coat |
| Topcoat | Nippon Paint EA4 Finish Texture | 1 coat |
| Steel | ||
|---|---|---|
| Type | Product Name | No. of Coat(s) |
| Primer/Sealer | Nippon Paint EA9 Red Oxide Primer / Nippon Paint EA9 Holding Primer FD | 1 coat |
| Intermediate | Nippon Paint EA9 Finish HB | 1 coat |
| Topcoat | Nippon Paint EA4 Finish Texture | 1 coat |
Application Data
| Application | Brush/Roller, Compressed Air Spray, or Airless Spray (preferably use if a thicker coat is required in one application) |
| Thinning | Thinner: SA-65 Thinner Brush/Roller: If necessary, add about 5% thinner by volume Compressed Air Spray: If necessary, add about 10-15% thinner by volume |
| Touch Dry/ Hard Dry | 2-3 hours / 16 hours |
| Recoating Interval | Minimum 16 hours |
| No. of Coat(s) | 1-3 coats |
| Theoretical Coverage | 6.4 - 10.2 m²/litre (for dry film thickness of 100 microns) |
