Commercial Flooring
Nippon Paint commercial flooring solutions combine aesthetic appeal with durable performance to meet the needs of modern commercial environments.
Designed for both new and refurbishment projects, our flooring systems offer seamless finishes, good abrasion resistance and easy maintenance across a wide range of spaces, including retail outlets, offices, showrooms, hospitality venues and recreational facilities.

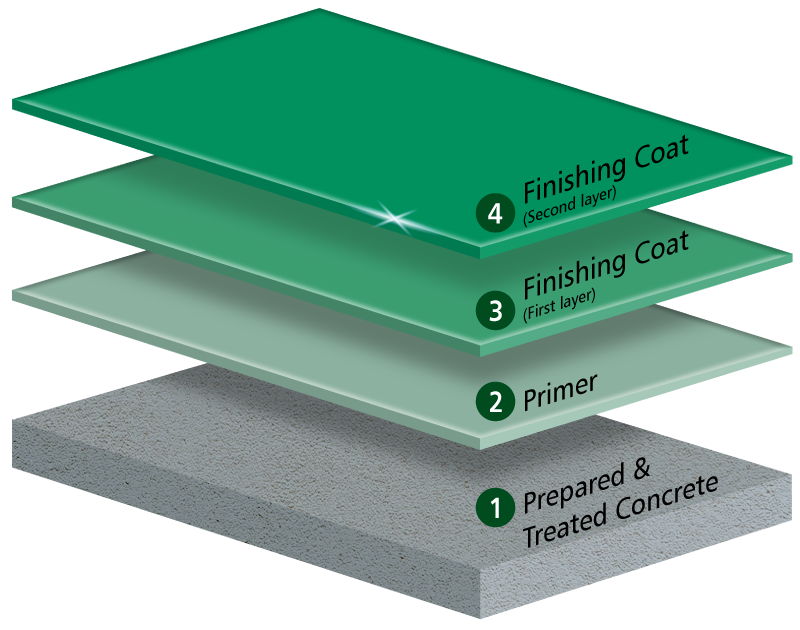

Type of System for Industrial & Commercial Areas
Prepared and Treated Concrete
Primer

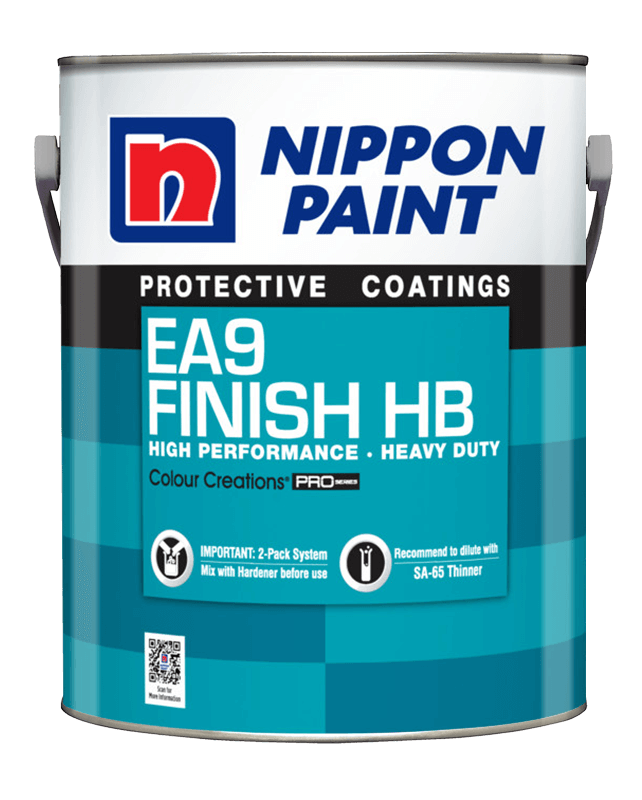

EA9 Finish HB
- Good resistance to abrasion and mechanical damage
- Excellent on correctly prepared surfaces
- Outstanding resistance to aqueous solutions and a wide range of industrial chemicals
Finishing Coat
(First layer)

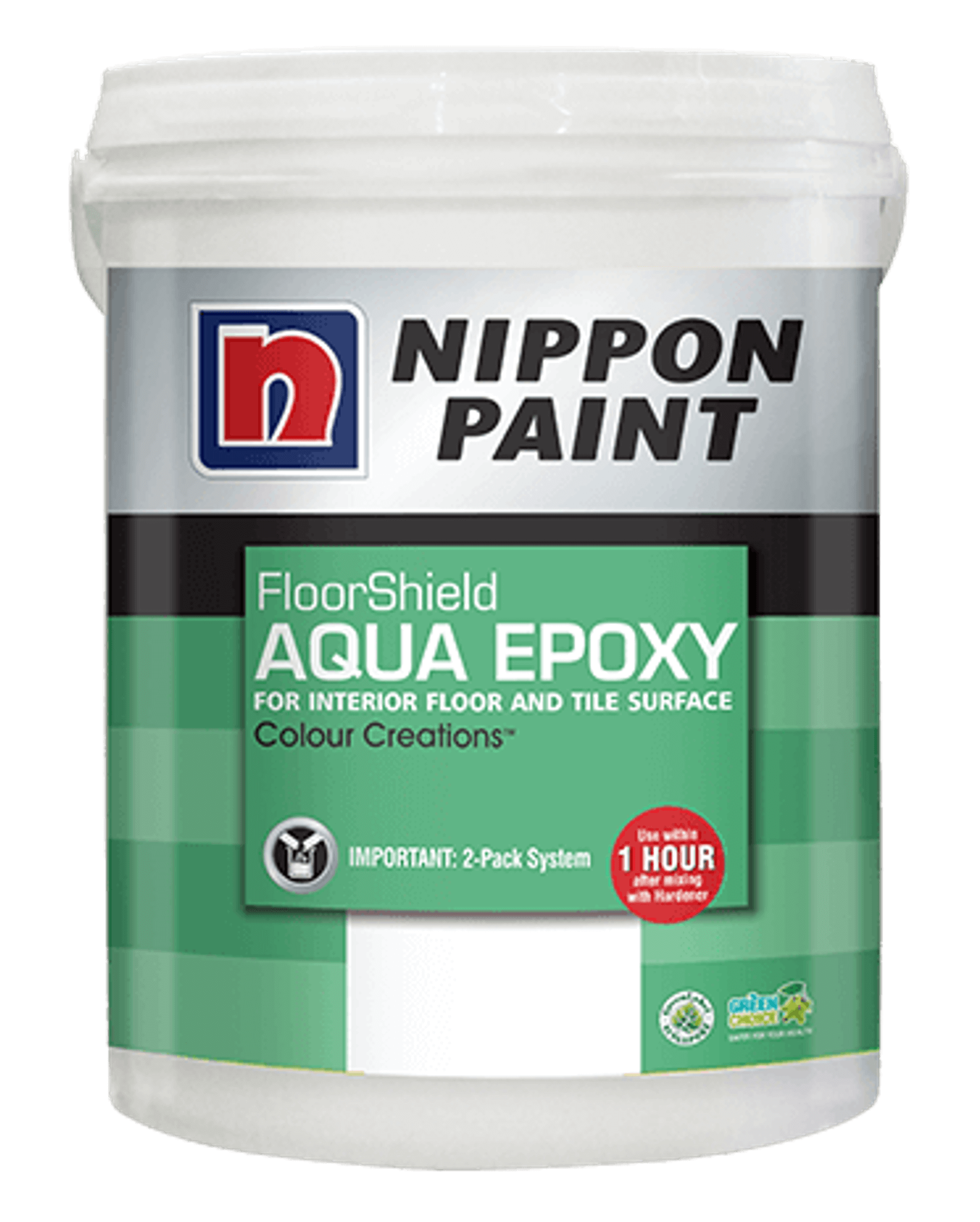

Aqua Epoxy
- Tough finishing
- Excellent abrasion resistant
- Low odour, environmental friendly
Finishing Coat
(Second layer)
Aqua Epoxy
- Tough finishing
- Excellent abrasion resistant
- Low odour, environmental friendly

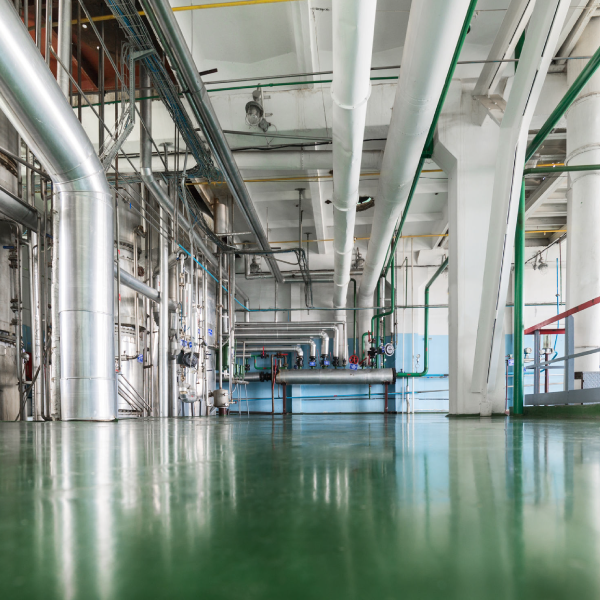

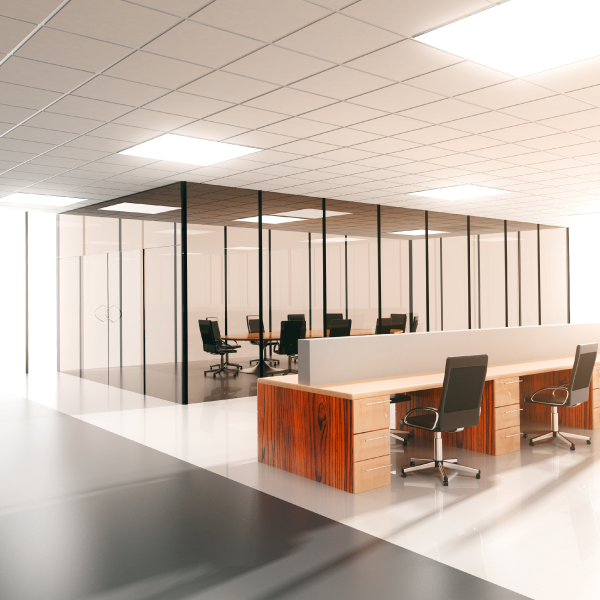

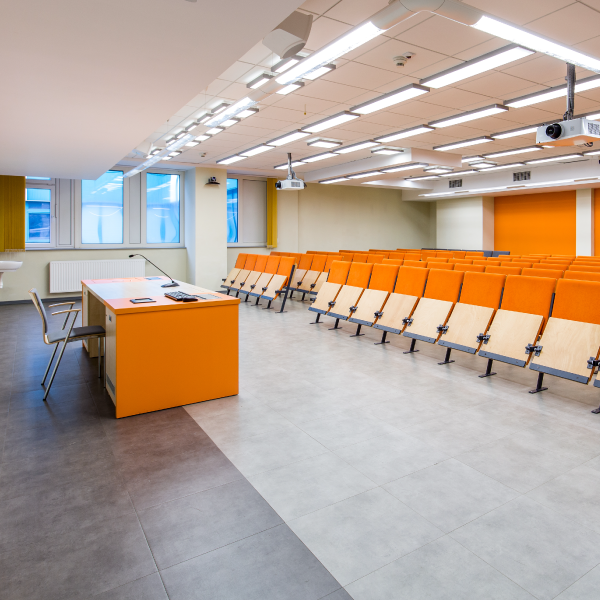

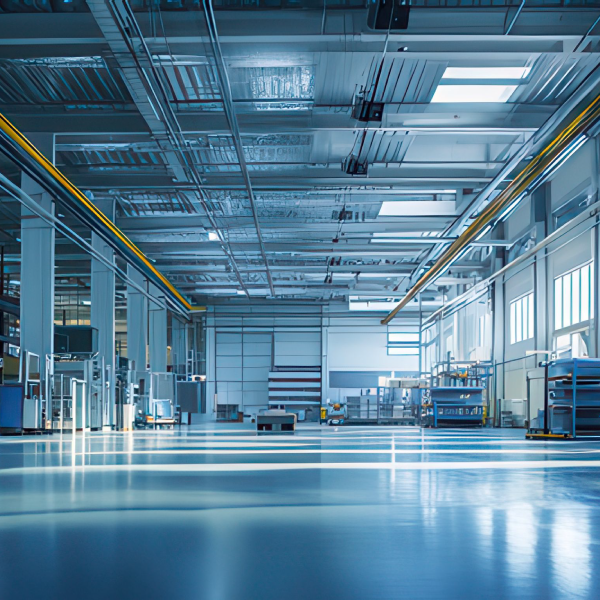

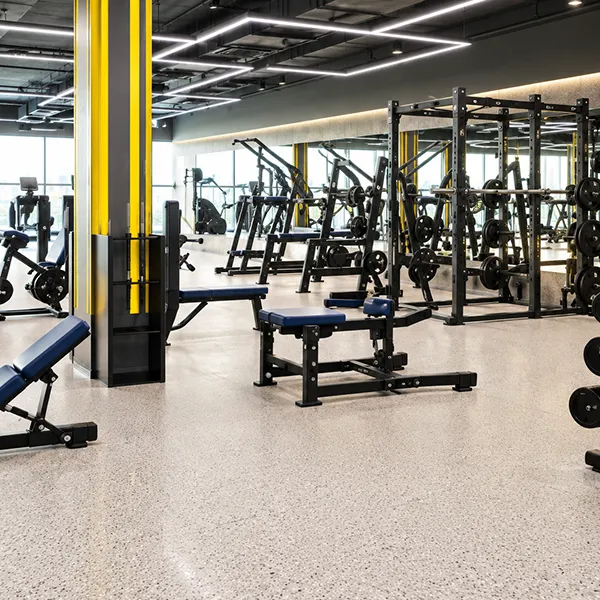

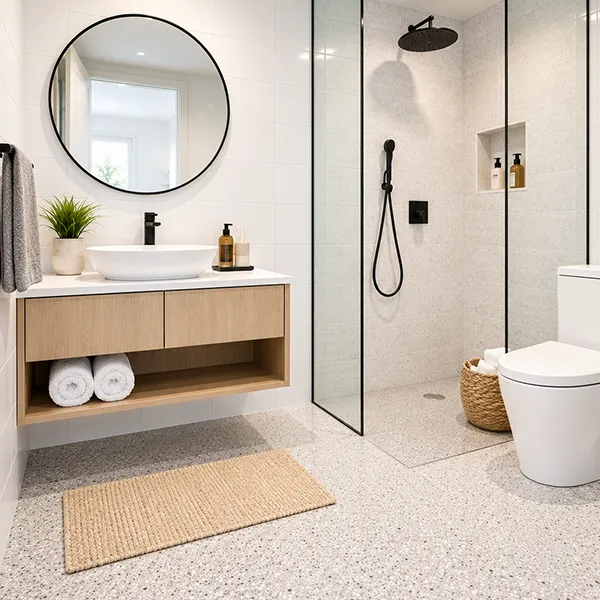

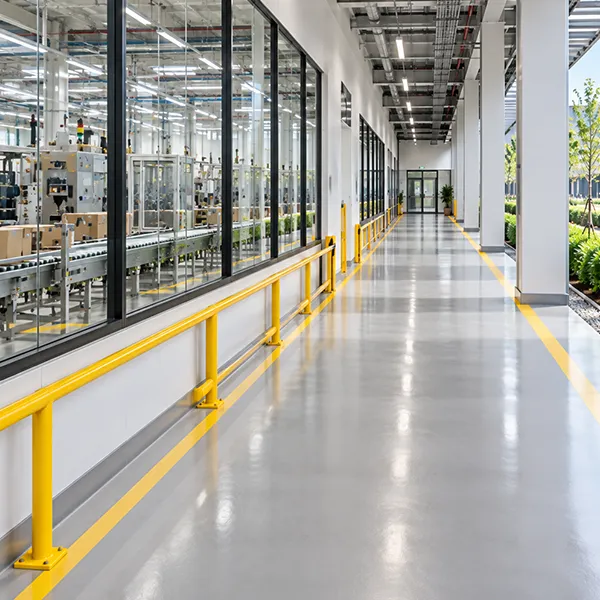

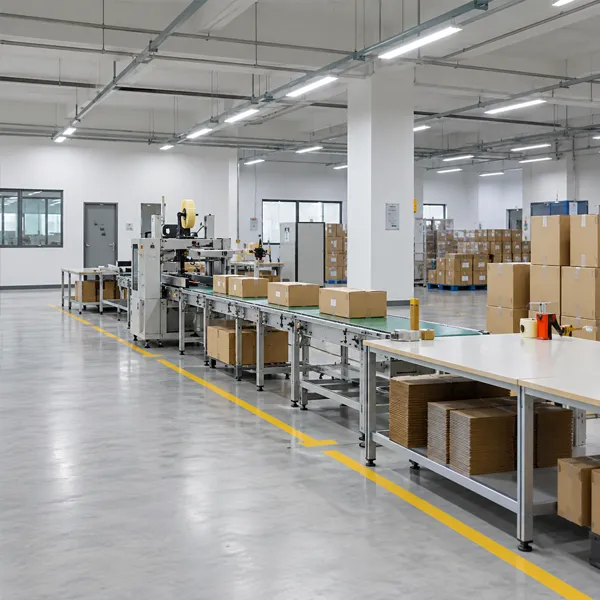

Recommended Areas
Overview Of Industrial & Commercial Areas Flooring System
| Systems | Aqua Epoxy | Aqua Epoxy (Tiles) |
|---|---|---|
| No. of Coats | 3 | 3 |
| Total Thickness (mm) | 0.2 - 0.25 | 0.2 - 0.25 |
| Hardness (ASTM D3363) |
2H | 2H |
| Abrasion Resistance (ASTM D4060) |
83mg / 1000 cycles | 83mg / 1000 cycles |
Prepared and Treated Concrete
Primer

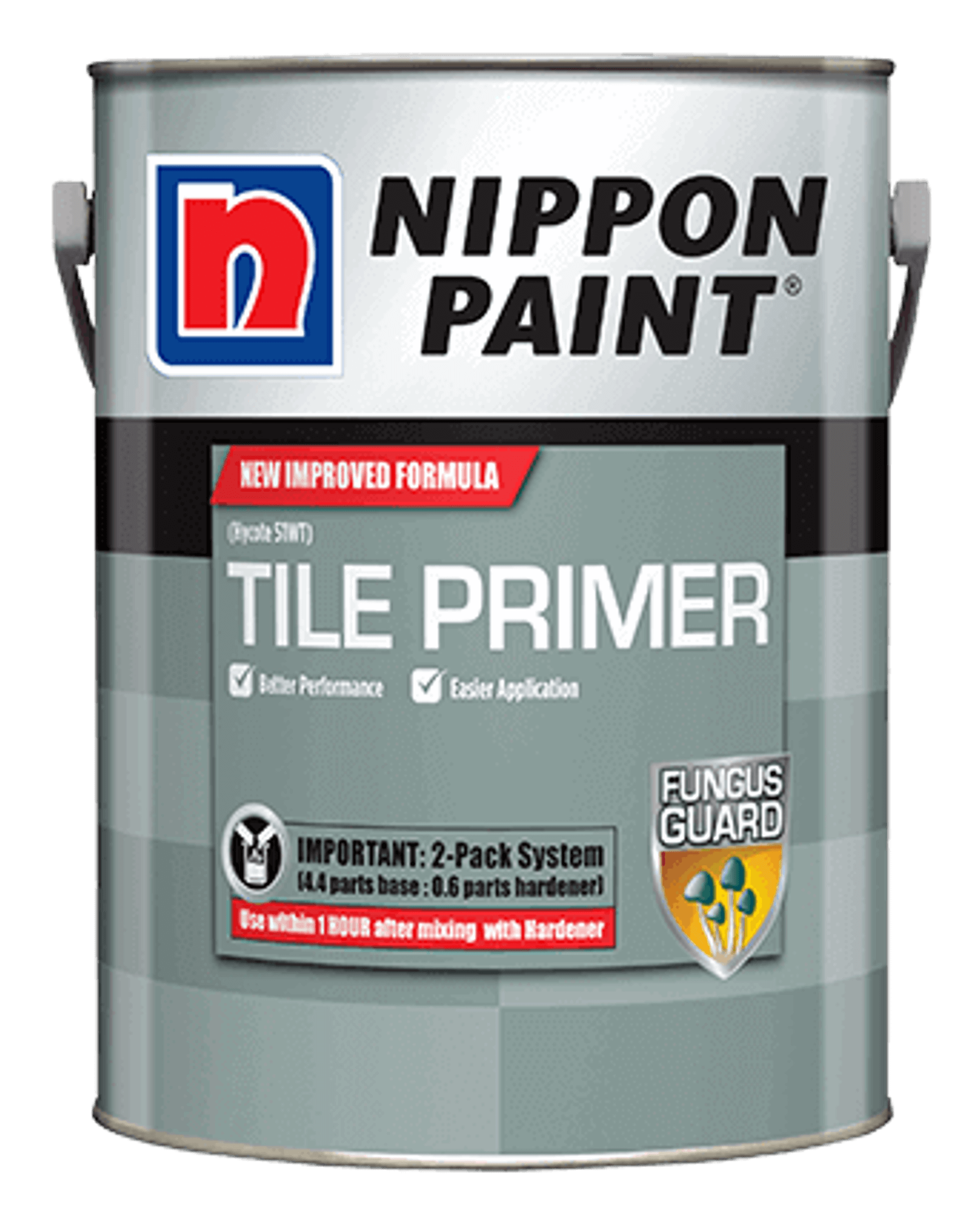

Tile Primer
- Low odour, environmental friendly
- Excellent adhesion on many type of substrate
Finishing Coat
(First layer)
Aqua Epoxy
- Tough finishing
- Excellent abrasion resistant
- Low odour, environmental friendly
Finishing Coat
(Second layer)
Aqua Epoxy
- Tough finishing
- Excellent abrasion resistant
- Low odour, environmental friendly

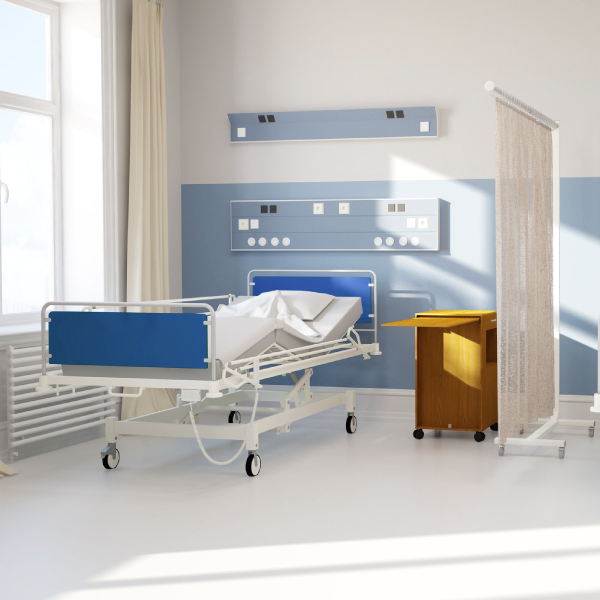

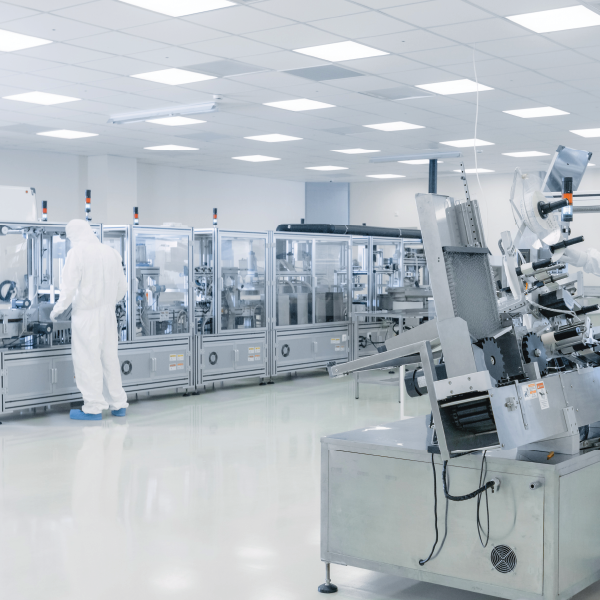

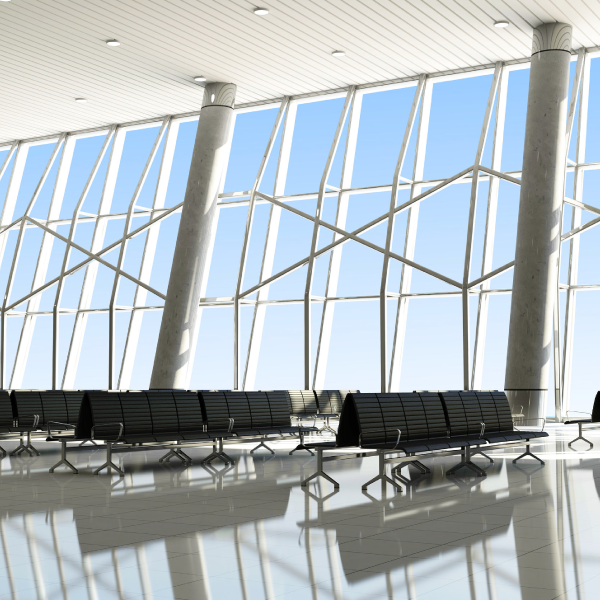

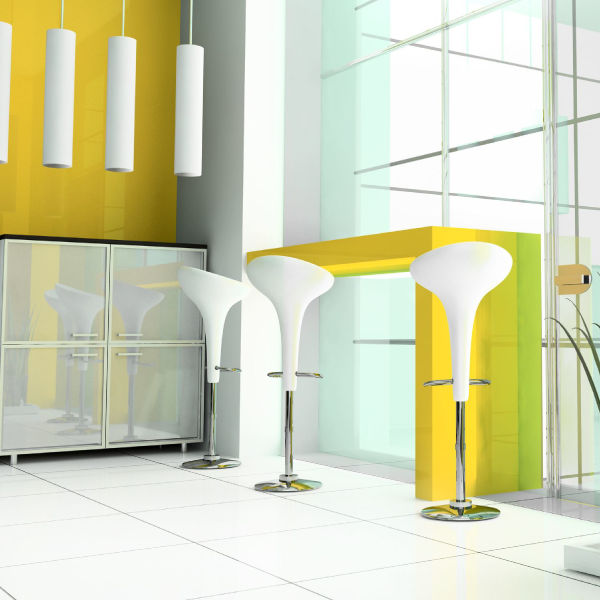

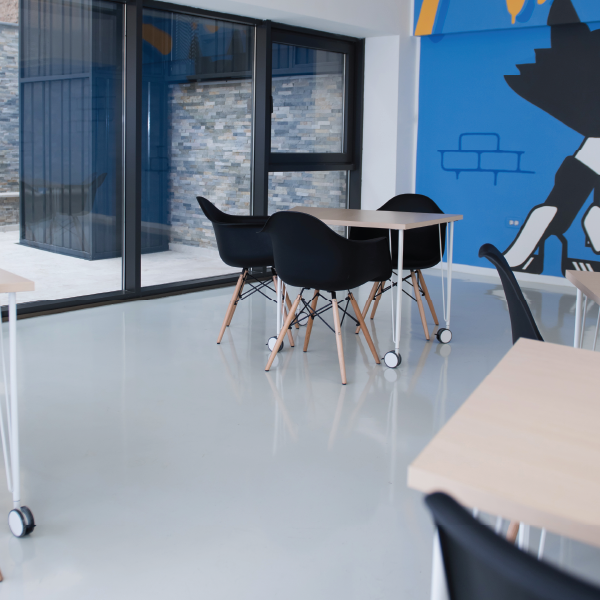

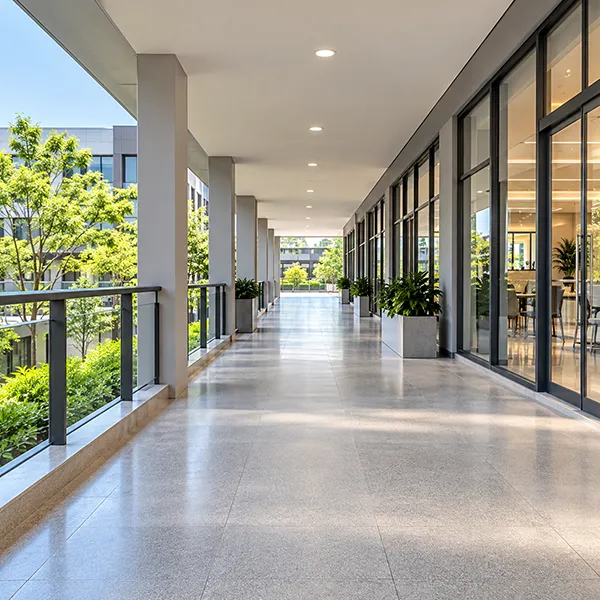

Recommended Areas
Overview Of Industrial & Commercial Areas Flooring System
| Systems | Aqua Epoxy | Aqua Epoxy (Tiles) |
|---|---|---|
| No. of Coats | 3 | 3 |
| Total Thickness (mm) | 0.2 - 0.25 | 0.2 - 0.25 |
| Hardness (ASTM D3363) |
2H | 2H |
| Abrasion Resistance (ASTM D4060) |
83mg / 1000 cycles | 83mg / 1000 cycles |
For the anti-slip system, incorporate 20% non-skid sand into the first layer of FloorShield WB PU Clear Matt only.

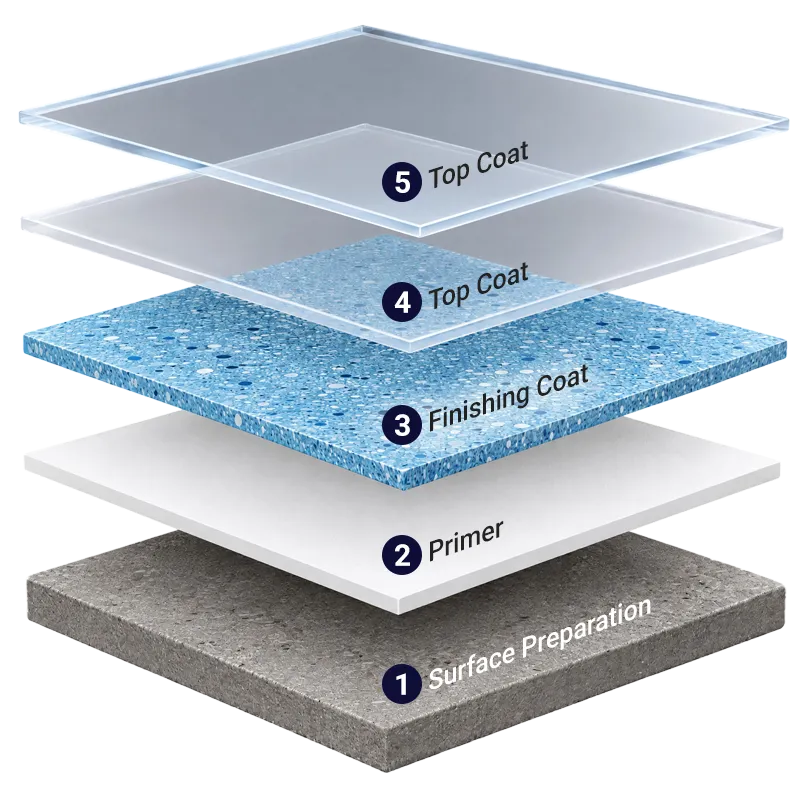

Prepared & Treated Concrete
Primer
FloorShield Solvent Free Epoxy Primer / High Performance Primer
- Solvent-free thus no solvent smell
- Low viscosity for penetration
- Excellent wetting of substrate
Finishing Coat
FloorArtz Floating Quartz
- Aesthetic flooring with durable performance
- Seamless and easy maintenances
- Good hardness and abrasion resistant
Top Coat
FloorShield WB PU Clear Matt
- Low odour, user friendly
- Provides even matt finishing
- Easy to apply
Top Coat
FloorShield WB PU Clear Matt
- Low odour, user friendly
- Provides even matt finishing
- Easy to apply

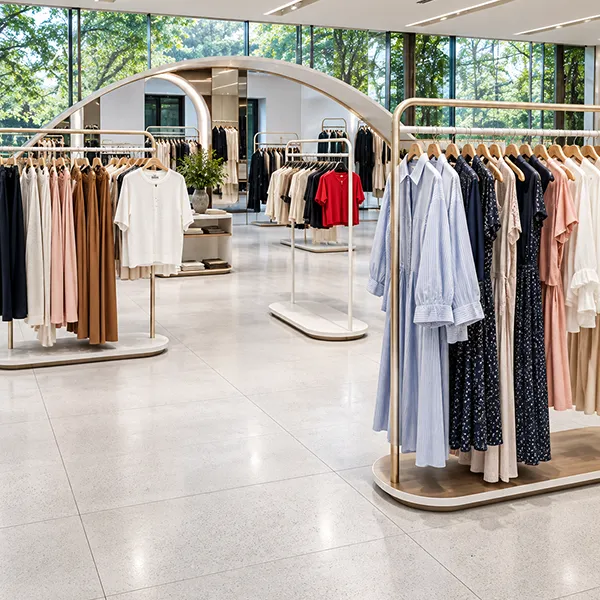

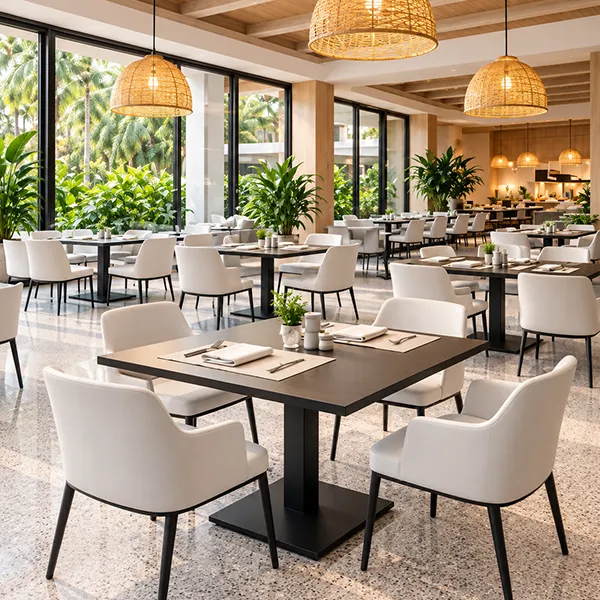

Recommended Areas
For the anti-slip system, incorporate 20% non-skid sand into the first layer of PU Recoatable Clear Finish only.
Prepared & Treated Concrete
Primer
FloorShield Solvent Free Epoxy Primer / High Performance Primer
- Solvent-free thus no solvent smell
- Low viscosity for penetration
- Excellent wetting of substrate
Finishing Coat
FloorArtz Floating Quartz
- Aesthetic flooring with durable performance
- Seamless and easy maintenances
- Good hardness and abrasion resistant
Top Coat

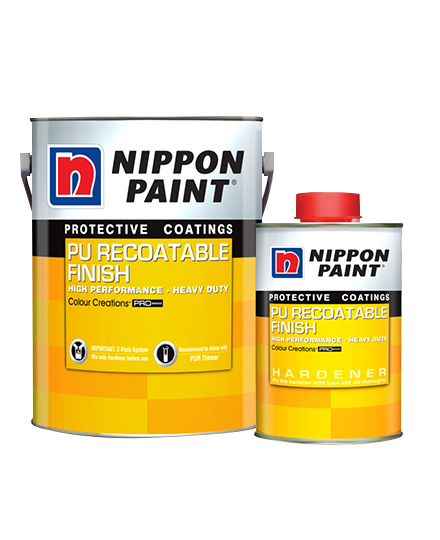

PU Recoatable Clear Finish
Note: Light sanding on FloorArtz Floating Quartz surface before applying PU Recoatable Clear Finish. 10% dilution with PU Recoatable Thinner is required.
- Weathering durability, gloss and colour retention
- Non-yellowing and does not chalk easily
- Resistant to splashes of mild, non-aggressive chemicals
Top Coat
PU Recoatable Clear Finish
Note: 10% dilution with PU Recoatable Thinner is required.
- Weathering durability, gloss and colour retention
- Non-yellowing and does not chalk easily
- Resistant to splashes of mild, non-aggressive chemicals

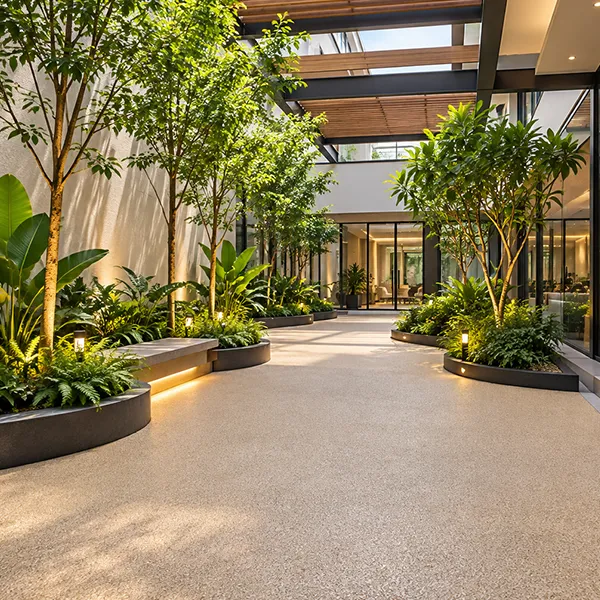

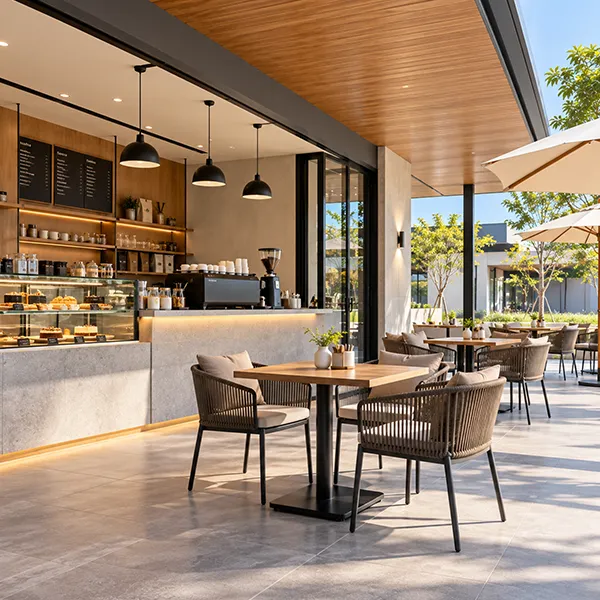

Recommended Areas
Overview Of Industrial & Commercial Areas Flooring System
| Systems | Concrete | Tiles | ||
|---|---|---|---|---|
| Interior | Exterior | Interior | Exterior | |
| No. of Coats | 2 | 4 | 1 | 3 |
| Total Thickness (mm) | 1.55 - 2.06 | 1.65 - 2.21 | 1.50 - 2.00 | 1.60 - 2.00 |
| Abrasion Resistance (ASTM D4060) |
< 80mg / 1000 cycles | |||
| Shore D Hardness (ASTM D2240) |
> 75 | |||
For the anti-slip system, incorporate 20% non-skid sand into the first layer of FloorShield WB PU Clear Matt only.
Prepared & Treated Tile
Finishing Coat
FloorArtz Floating Quartz
- Aesthetic flooring with durable performance
- Seamless and easy maintenances
- Good hardness and abrasion resistant
Top Coat
FloorShield WB PU Clear Matt
- Low odour, user friendly
- Provides even matt finishing
- Easy to apply
Top Coat
FloorShield WB PU Clear Matt
- Low odour, user friendly
- Provides even matt finishing
- Easy to apply

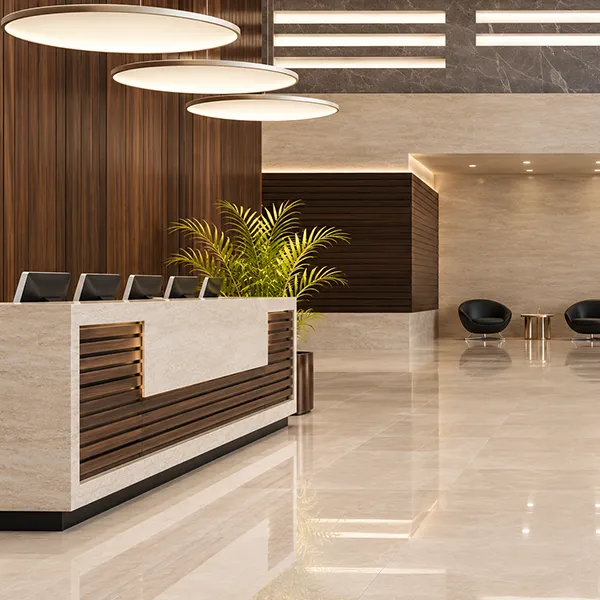

Recommended Areas
For the anti-slip system, incorporate 20% non-skid sand into the first layer of PU Recoatable Clear Finish only.

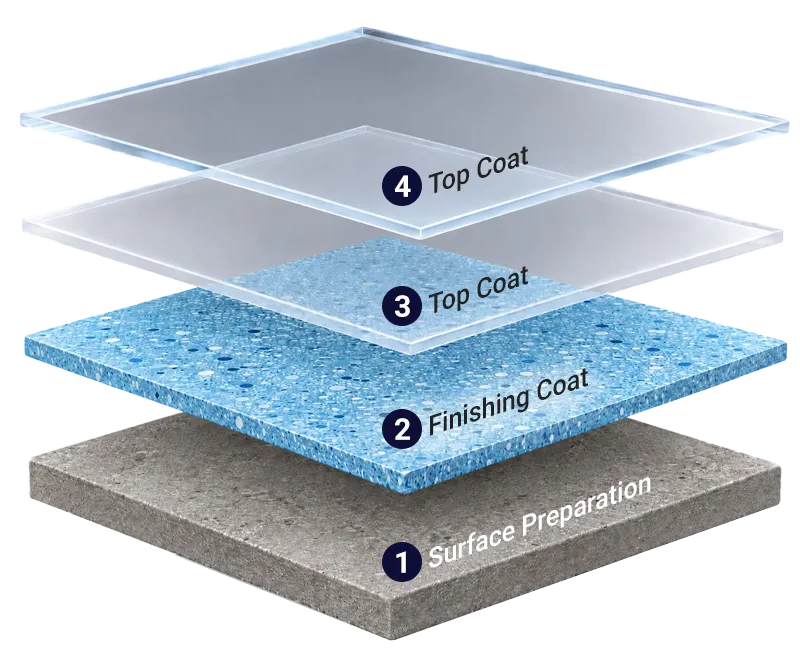

Prepared & Treated Tile
Finishing Coat
FloorArtz Floating Quartz
- Aesthetic flooring with durable performance
- Seamless and easy maintenances
- Good hardness and abrasion resistant
Top Coat
PU Recoatable Clear Finish
Note: Light sanding on FloorArtz Floating Quartz surface before applying PU Recoatable Clear Finish. 10% dilution with PU Recoatable Thinner is required.
- Weathering durability, gloss and colour retention
- Non-yellowing and does not chalk easily
- Resistant to splashes of mild, non-aggressive chemicals
Top Coat
PU Recoatable Clear Finish
Note: 10% dilution with PU Recoatable Thinner is required.
- Weathering durability, gloss and colour retention
- Non-yellowing and does not chalk easily
- Resistant to splashes of mild, non-aggressive chemicals
Recommended Areas
Overview Of Industrial & Commercial Areas Flooring System
| Systems | Concrete | Tiles | ||
|---|---|---|---|---|
| Interior | Exterior | Interior | Exterior | |
| No. of Coats | 2 | 4 | 1 | 3 |
| Total Thickness (mm) | 1.55 - 2.06 | 1.65 - 2.21 | 1.50 - 2.00 | 1.60 - 2.00 |
| Abrasion Resistance (ASTM D4060) |
< 80mg / 1000 cycles | |||
| Shore D Hardness (ASTM D2240) |
> 75 | |||
