Industrial Flooring
Our multi-purpose floor coatings include water-based and solvent-free epoxy, solvent-based polyurethane (PU), PU cementitious screed, and electrostatic discharge (ESD) systems engineered for applications ranging from light to heavy-duty use. Offering exceptional abrasion and chemical resistance, along with specialised performance features, our flooring solutions cater to a wide range of industries, from food-safe environments to large-scale warehouses.
Type of Industrial Flooring System

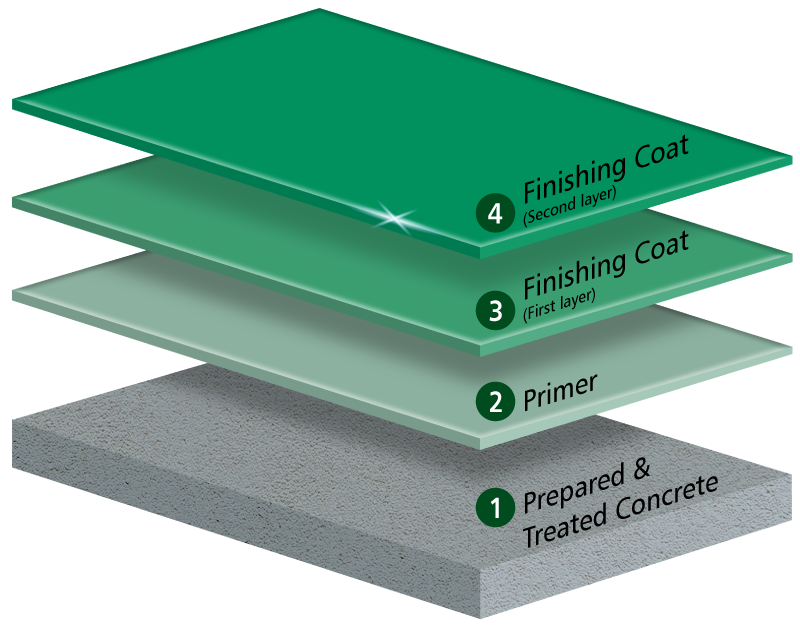

Prepared and Treated Concrete
Primer
FloorShield SF Epoxy Primer
- Solvent-free thus no solvent smell
- Low viscosity for penetration
- Excellent wetting of substrate
Finishing Coat
(First layer)
FloorShield SF Epoxy Finish
- Solvent free thus no solvent smell
- Abrasion resistant
- Chemical resistant
Finishing Coat
(Second layer)
FloorShield SF Epoxy Finish
- Solvent free thus no solvent smell
- Abrasion resistant
- Chemical resistant

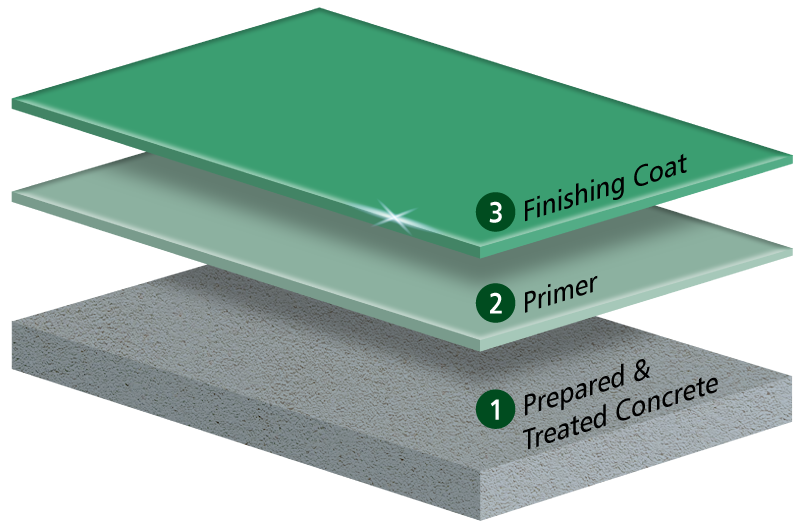

Prepared and Treated Concrete
Primer
FloorShield SF Epoxy Primer
- Solvent-free thus no solvent smell
- Low viscosity for penetration
- Excellent wetting of substrate
Finishing Coat
FloorShield SL1 / SL2 Epoxy Finish
- High gloss thus easy to clean contamination
- High impact and chemical resistance
- Seamless and dust-free
Note: Additional systems are available, including the Moisture Barrier System for basement and direct ground contact (moisture content >4%).

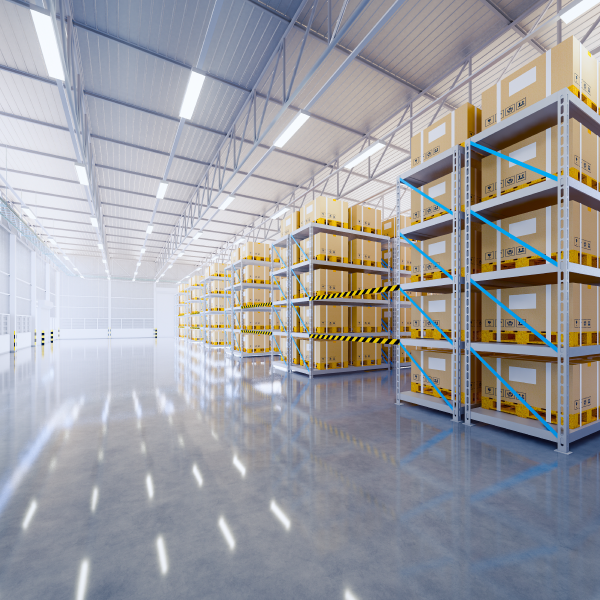

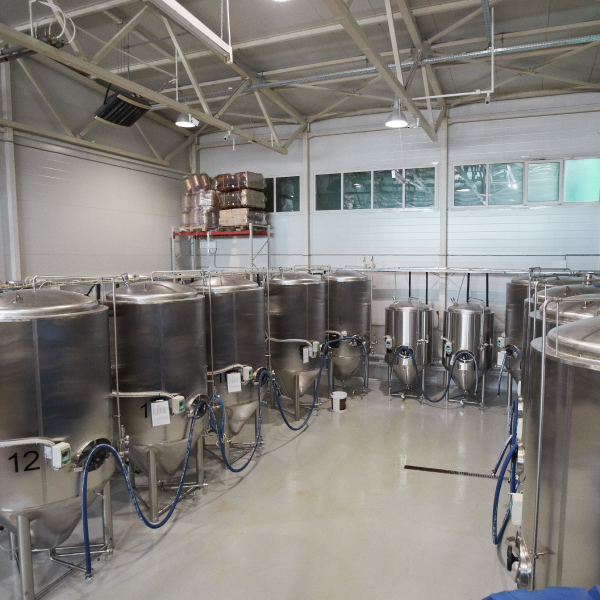

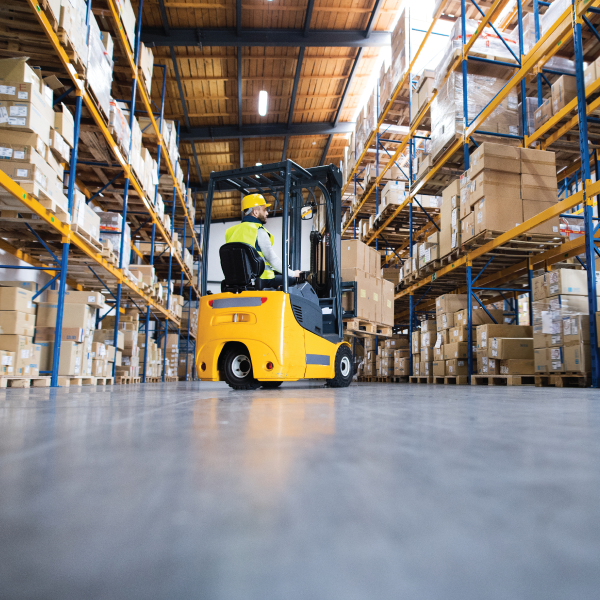

Recommended Areas
Overview Of Industrial Flooring Systems
| Moisture Barrier System | ||||
|---|---|---|---|---|
| System | FloorShield Solvent Free Epoxy System | FloorShield Solvent Free Self Levelling Epoxy System | FloorShield Solvent Free Epoxy System | FloorShield Solvent Free Self Levelling Epoxy System |
| No. of Coats | 3 | 2 | 5 | 4 |
| Total Thickness (mm) | 0.5 - 0.6 | 1.0 - 2.0 | 4.5 - 5.0 | 5.5 - 6.0 |
| Abrasion Resistance (ASTM D4060) |
< 80mg / 1000 cycles | < 80mg / 1000 cycles | < 80mg / 1000 cycles | < 80mg / 1000 cycles |
| Shore D Hardness (ASTM D2240) |
> 80 | > 75 | > 80 | > 75 |
| Compressive Strength (ASTM C579) |
> 85N/mm² | > 85N/mm² | > 40N/mm² | > 40N/mm² |
| Flexural Strength (ASTM C580) |
> 40MPa | > 40MPa | > 20MPa | > 20MPa |
| Adhesion Strength (ASTM D4541) |
> 1.5N/mm² | > 1.5N/mm² | > 1.5N/mm² | > 1.5N/mm² |
FloorShield Epoxy PU System
Prepared and Treated Concrete
Primer
FloorShield SF Epoxy Primer
- Solvent-free thus no solvent smell
- Low viscosity for penetration
- Excellent wetting of substrate
Finishing Coat
(First layer)
FloorShield SF Epoxy Finish
- Solvent free thus no solvent smell
- Abrasion resistant
- Chemical resistant
Finishing Coat
(Second layer)
FloorShield SB BU Finish
- Low viscosity provides excellent wetting and over-coating adhesion
- Highly abrasion resistance
- Excellent resistance to fuel, engine oil, and cleaning chemicals
Note: Additional systems are available, including the Moisture barrier system is available for basement/ direct ground contact (moisture content > 4%) to prevent paint bubbling and paint peeling.

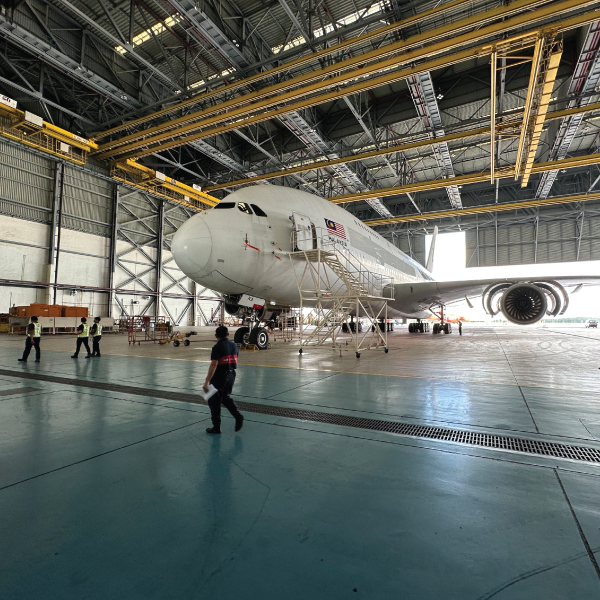

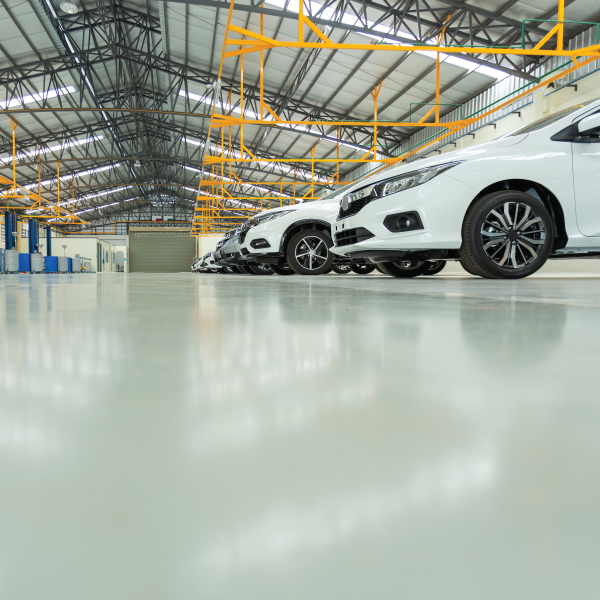

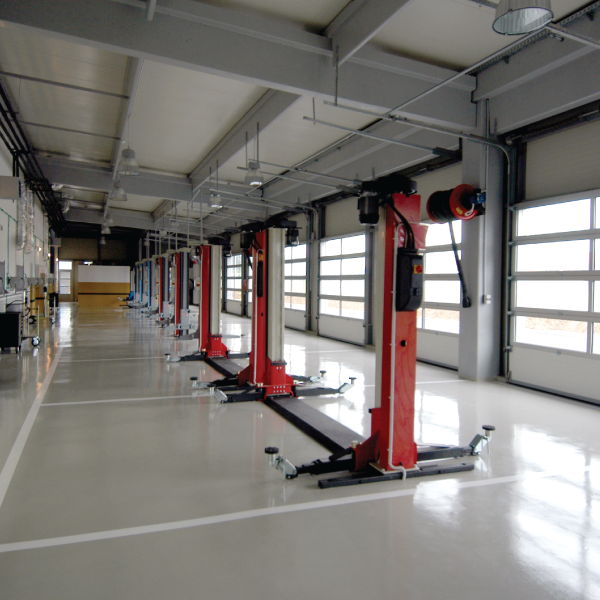

Recommended Areas
Overview Of Industrial Flooring Systems
| Moisture Barrier System | |||
|---|---|---|---|
| System | FloorShield Epoxy PU System | FloorShield Epoxy PU System | |
| No. of Coats | 3 | 5 | |
| Total Thickness (mm) | 0.5 - 0.6 | 5.0 - 5.5 | |
| Abrasion Resistance (ASTM D4060) |
< 80mg / 1000 cycles | < 80mg / 1000 cycles | |
| Shore D Hardness (ASTM D2240) |
> 80 | > 80 | |
| Compressive Strength (ASTM C579) |
85N/mm² | > 40N/mm² | |
| Flexural Strength (ASTM C580) |
40MPa | > 20MPa | |
| Adhesion Strength (ASTM D4541) |
> 1.5N/mm² | > 1.5N/mm² | |
| UV Light Resistance | Excellent (Non-Yellowing) | Excellent (Non-Yellowing) | |
Type of Industrial Flooring System

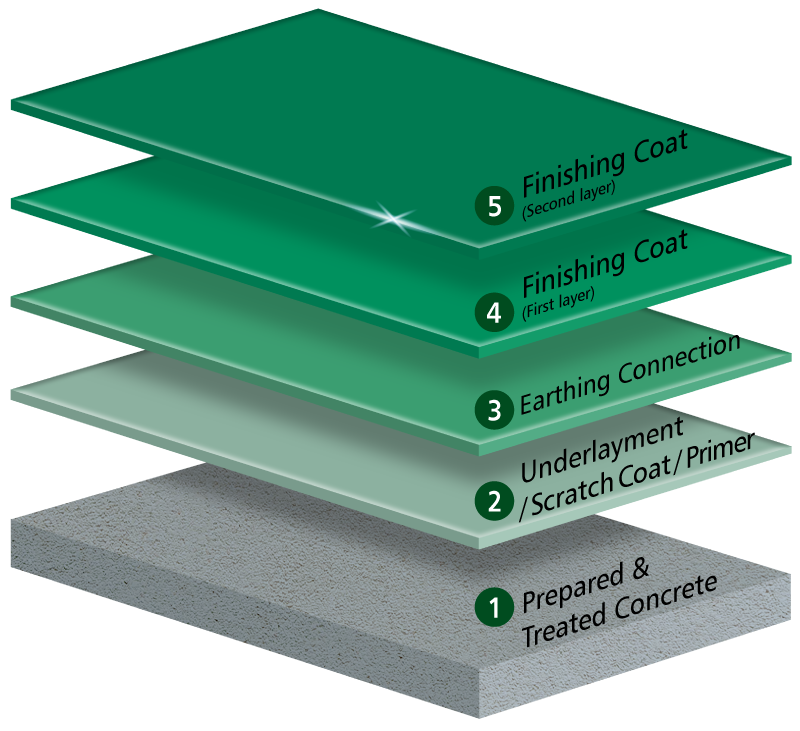

Prepared and Treated Concrete
Underlayment / Scratch Coat / Primer
Earthing Connection
Finishing Coat
(First layer)
FloorShield ESD SF Epoxy Finish
- Electrostatic conductive
- High chemical resistant against wide range of chemical
- Abrasion resistant against medium traffic and trolley movement
Finishing Coat
(Second layer)
FloorShield ESD SF Epoxy Finish
- Electrostatic conductive
- High chemical resistant against wide range of chemical
- Abrasion resistant against medium traffic and trolley movement

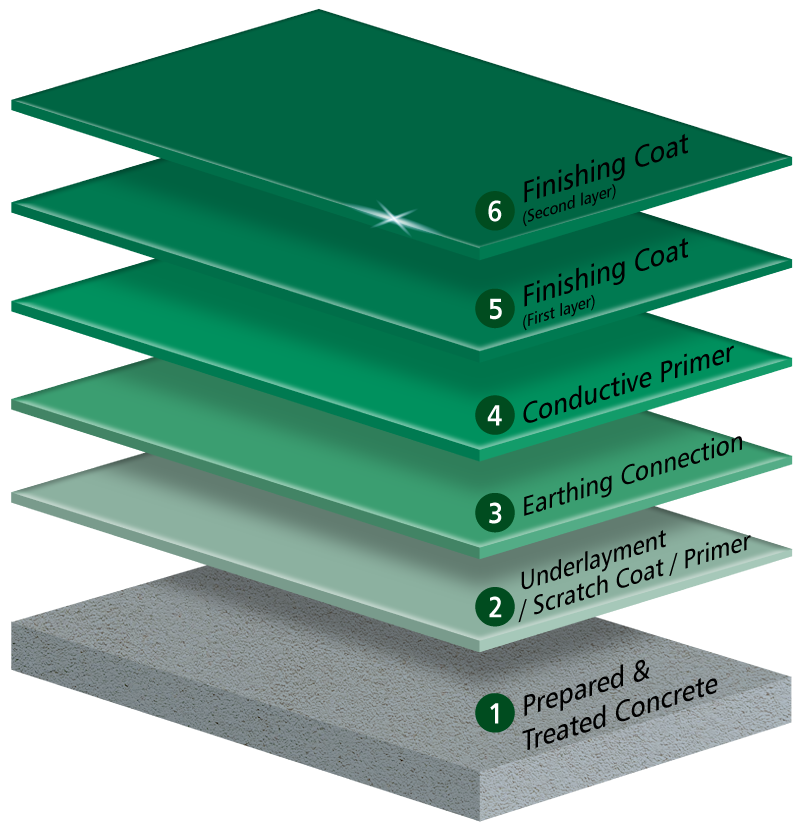

Prepared and Treated Concrete
Underlayment / Scratch Coat / Primer
Earthing Connection
Conductive Primer
FloorShield ESD Primer WB
- Highly electrostatic conductive
- Good adhesion with concrete, and ESD topcoat
- Solvent-free, less odour
Finishing Coat
(First layer)
FloorShield ESD SF Epoxy Finish
- Electrostatic conductive
- High chemical resistant against wide range of chemical
- Abrasion resistant against medium traffic and trolley movement
Finishing Coat
(Second layer)
FloorShield ESD SF Epoxy Finish
- Electrostatic conductive
- High chemical resistant against wide range of chemical
- Abrasion resistant against medium traffic and trolley movement
Note: Additional systems are available, including the Moisture Barrier System for basements and direct ground contact (moisture content >4%), as well as ESD SL Epoxy Finish and ESD Ucreed MD (requiring a scratch coat before application) for various finishing coats. The ESD PU Finish is also available for exposed UV areas.

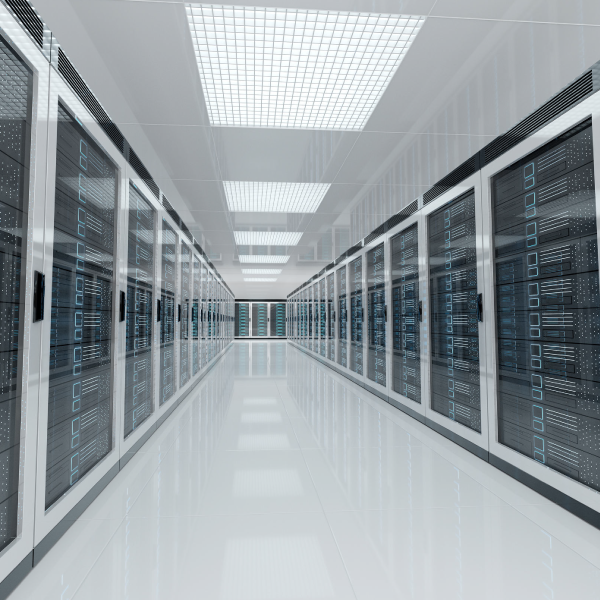

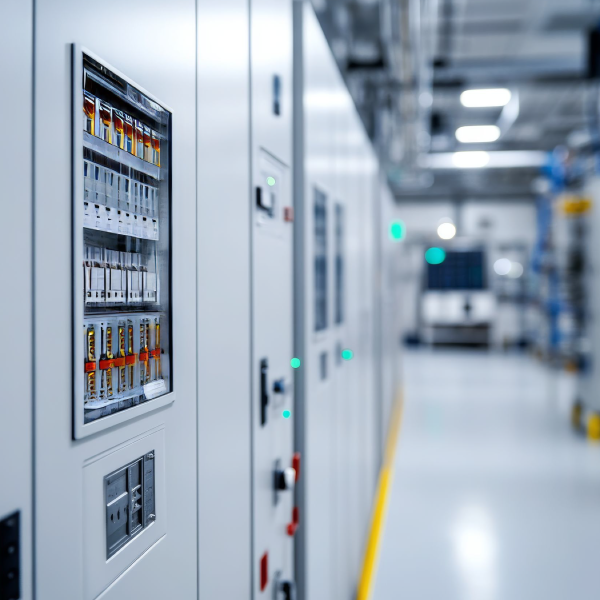

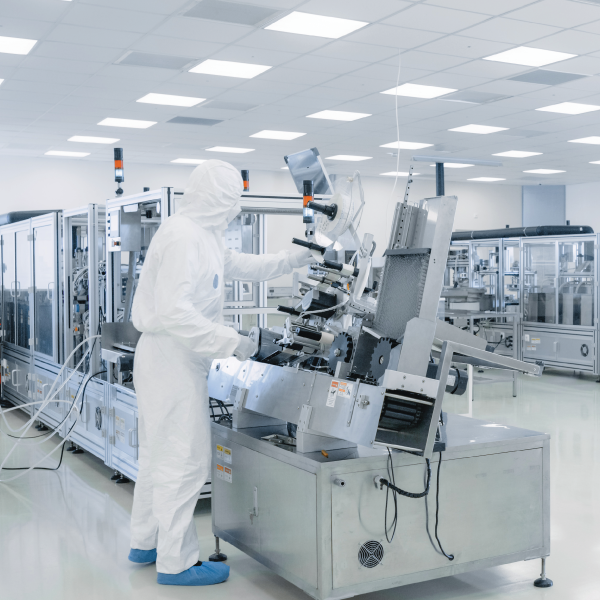

Recommended Areas
Overview Of Industrial Flooring Systems
| System | FloorShield ESD (Dissipative) |
FloorShield ESD (Conductive) |
|---|---|---|
| No. of Coats | 3 | 3 |
| Total Thickness (mm) | 0.5 - 0.6 | 0.5 - 0.6 |
| Surface to Ground & Surface to Surface (Earth) RG Spec (BS2050) |
1 x 10⁶ ohm to 9 x 10⁹ ohm | 1 x 10⁴ ohm to 9 x 10⁶ ohm |
| ANSI / ESD S-20.20-2007 | Compliant | Compliant |
| Decay Time through Human Body |
< 20s | < 20s |
| Human Body Voltage | < 100 volts | < 100 volts |
| Abrasion Resistance (ASTM D4060) |
< 5mg / 1000 cycles | < 5mg / 1000 cycles |
| Shore D Hardness (ASTM D2240) |
> 75 | > 75 |
| Compressive Strength (BS 6319) |
> 50N/mm² | > 50N/mm² |
Type of Industrial Flooring System
Prepared and Treated Concrete
Primer
AquaPrime Epoxy Primer (Red)
- Excellent bond strength to concrete surfaces
- Moisture tolerant to damp substrates during application
- Zero VOC and environmentally friendly
Finishing Coat
(First layer)
FloorShield Ucreed MD
(Scratch Coat)
- Excellent wear resistance and durable
- Resists micro-organism (bacterial, fungi, mold, mildew) growth
- HACCP Certified
Finishing Coat
(Second layer)
FloorShield Ucreed MD
(Scratch Coat)
- Excellent wear resistance and durable
- Resists micro-organism (bacterial, fungi, mold, mildew) growth
- HACCP Certified
Prepared and Treated Concrete
Primer
AquaPrime Epoxy Primer (Red)
- Excellent bond strength to concrete surfaces
- Moisture tolerant to damp substrates during application
- Zero VOC and environmentally friendly
Finishing Coat
(First layer)
FloorShield Ucreed MD
(Scratch Coat)
- Excellent chemical resistance
- High impact resistance
- Excellent wear resistance and durable
Finishing Coat
(Second layer)
FloorShield Ucreed HD
- Excellent wear resistance and durable
- Resists micro-organism (bacterial, fungi, mold, mildew) growth
- HACCP Certified

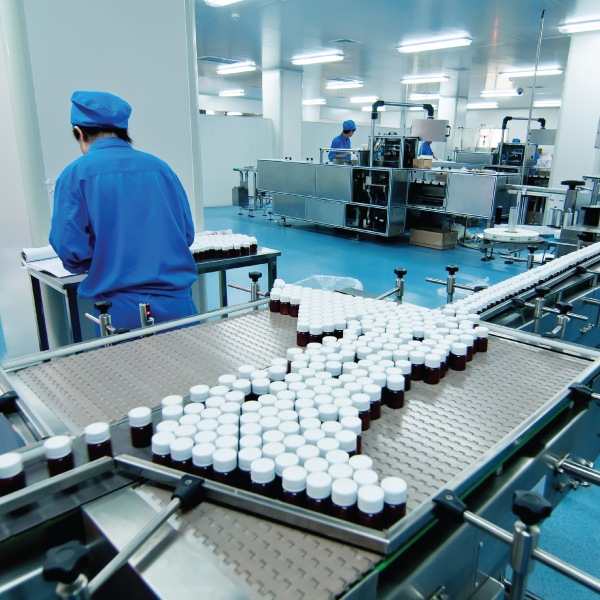

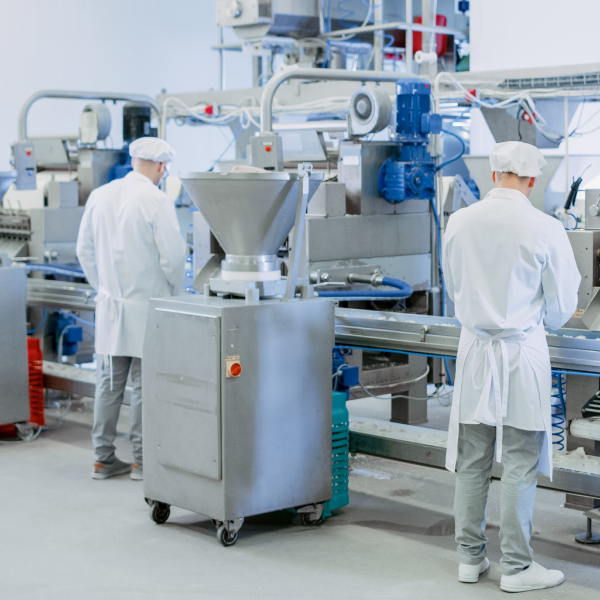

Recommended Areas
Overview Of Industrial Flooring Systems
| System | FloorShield Ucreed MD | FloorShield Ucreed HD |
|---|---|---|
| No. of Coats | 4 | 4 |
| Total Thickness (mm) | 4 - 7 | 7 - 13 |
| Abrasion Resistance (ASTM D4060) |
38mg / 1000 cycles | 83mg / 1000 cycles |
| Shore D Hardness (ASTM D2240) |
> 80 | > 82 |
| Compressive Strength (BS 6319) |
> 50MPa | > 50MPa |
| Flexural Strength (ASTM C348) |
> 20MPa | > 20MPa |
| Adhesion to Concrete (ASTM C158) |
> 1.5MPa | > 1.5MPa |
| Service Temperature |
5°C to 80°C (3mm) -5°C to 100°C (6mm) |
-15°C to 130°C (6 - 9mm) -40°C to 150°C (9 - 12mm) |
