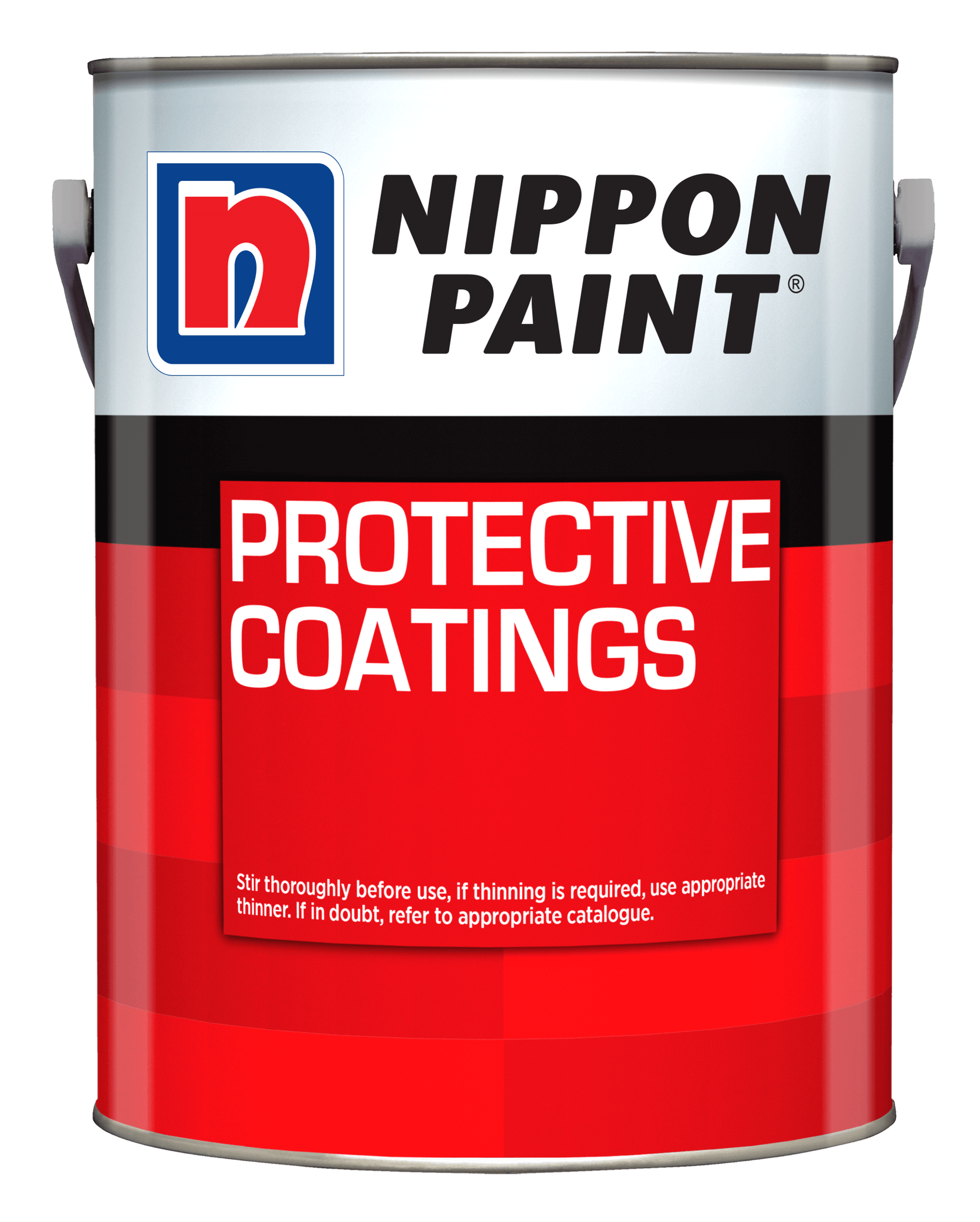

NIPPON PAINT PCB PRIMER is an air-dry synthetic resin-based primer. Its quick drying characteristic coupled with the excellent mechanical property makes it an ideal coating for painting on mild steel surfaces.
|
Product Features: |
Coating System
Application
Coating System
| Iron and Steel | ||
|---|---|---|
| Type | Product Name | No. of Coat(s) |
| Primer/Sealer | Nippon Paint PCB Primer | 1 coat |
| Intermediate | Nippon Paint PCB Finish | 1 coat |
| Topcoat | Nippon Paint PCB Finish | 1 coat |
Application Data
| Application | Brush/Roller, Compressed Air Spray, or Airless Spray |
| Thinning | Use OP-1 Thinner when necessary. Brush/roller: add up to 5% thinner. Compressed air spray: add up to 10%-15% thinner, by volume. |
| Touch Dry/ Hard Dry | 10 minutes / 1-2 hours |
| Recoating Interval | Minimum 4 hours |
| No. of Coat(s) | 1-2 coats |
| Theoretical Coverage | 12.2 - 18.3 m²/litre (for dry film thickness of 30-45 microns) |
