Coating System
Application
Coating System
| Iron and Steel | ||
|---|---|---|
| Type | Product Name | No. of Coat(s) |

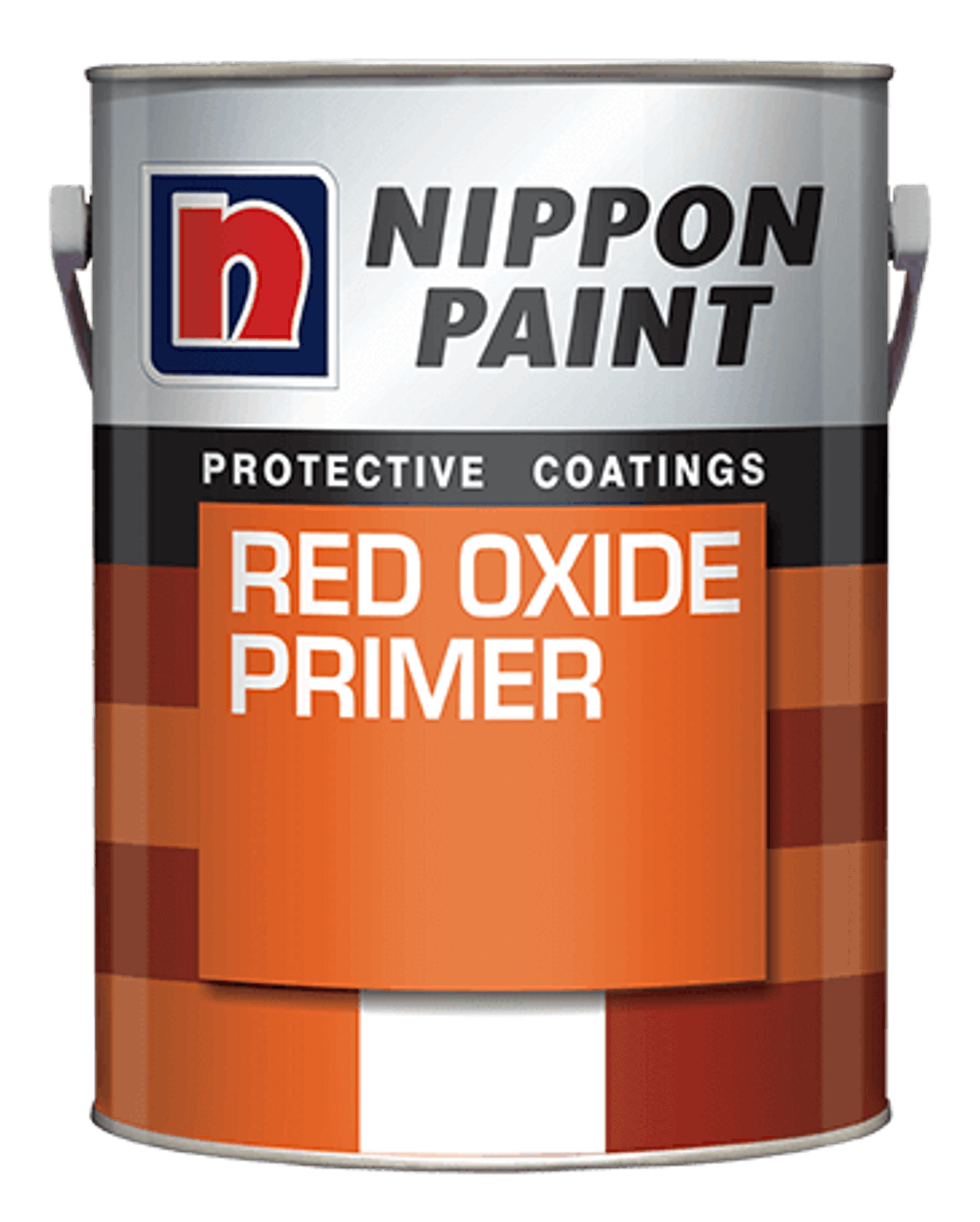

| Primer/Sealer | Nippon Paint Red Oxide Primer | 1 coat |
| Intermediate | Nippon Paint Protective Finish FD / Nippon Paint Micaceous Iron Oxide / Nippon Paint Aluminium Paint | 1 coat |
| Topcoat | Nippon Paint Protective Finish FD / Nippon Paint Micaceous Iron Oxide / Nippon Paint Aluminium Paint | 1 coat |
Application Data
| Application | Brush/Roller, Compressed Air Spray, or Airless Spray. |
| Thinning | Use Nippon Paint General Purpose Thinner Brush/Roller: 5% thinner by volume Compressed Air Spray: 10%-15% thinner by volume |
| Touch Dry/ Hard Dry | Approximately 1 hour / 16 hours |
| No. of Coat(s) | 1 – 2 coats |
| Theoretical Coverage | 16.7 m2 /litre (for dry film thickness of 30 microns) 11.1 m2 /litre (for dry film thickness of 45 microns) |
